F-15 Eagle

1972

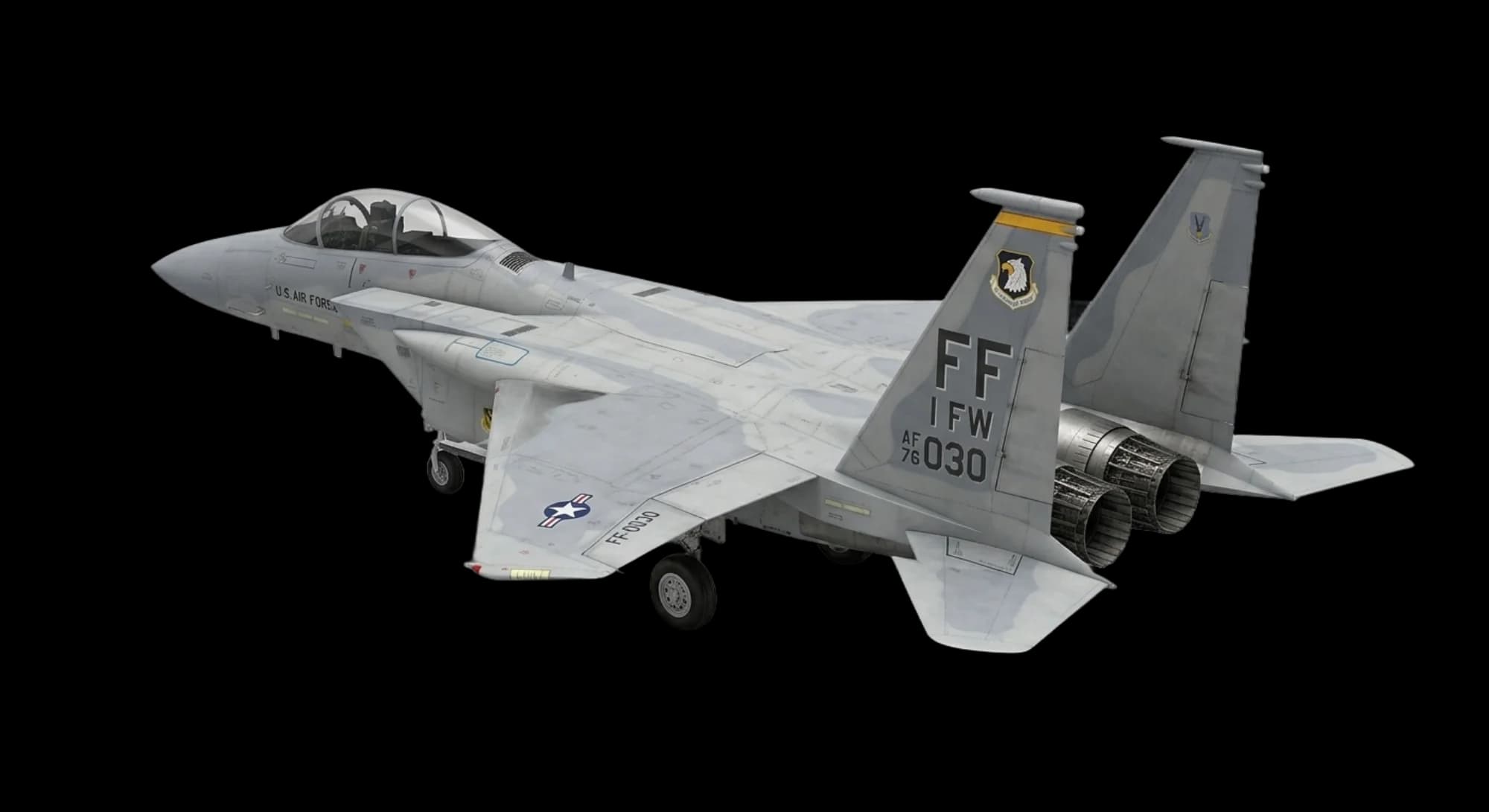

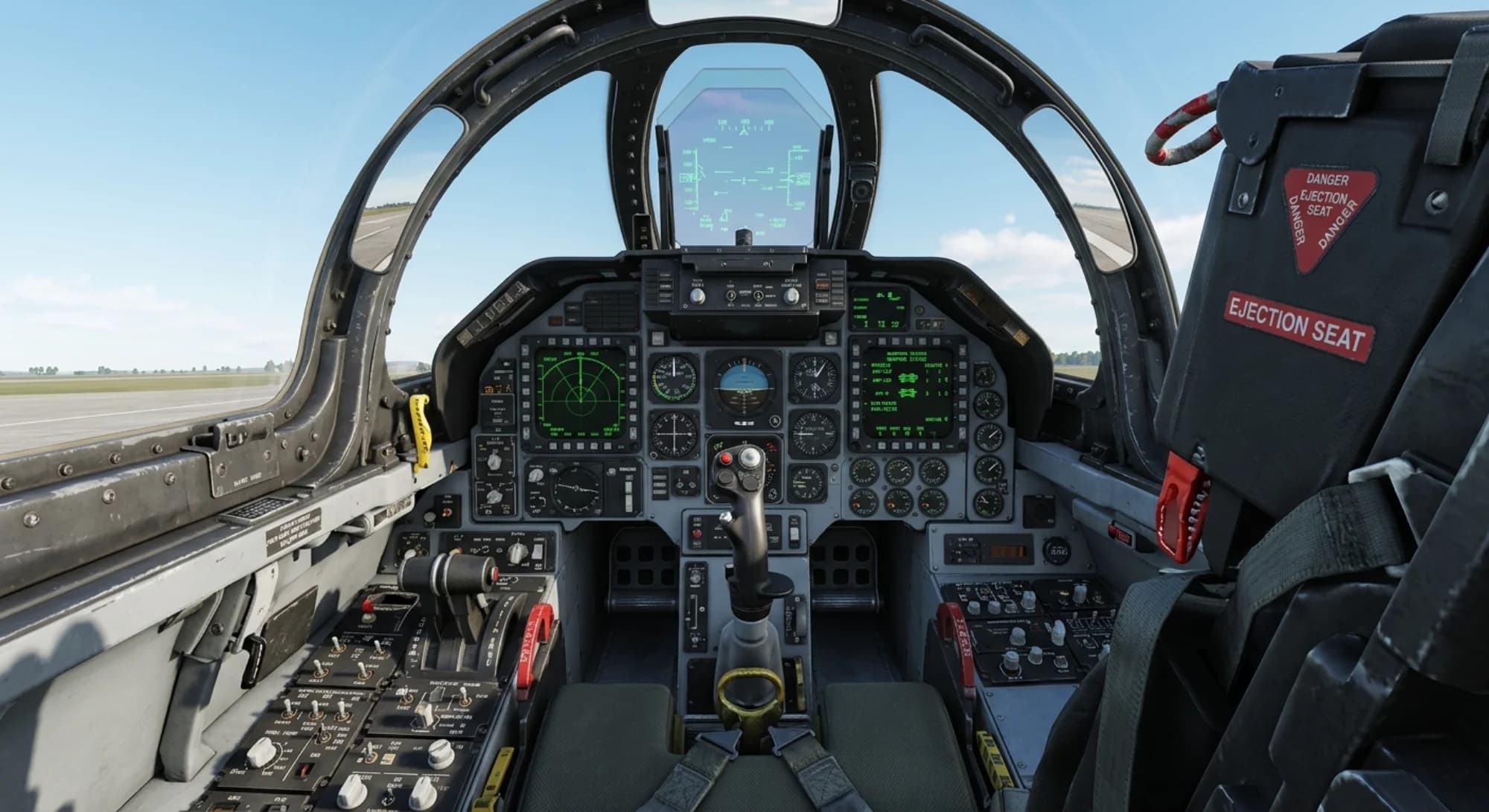

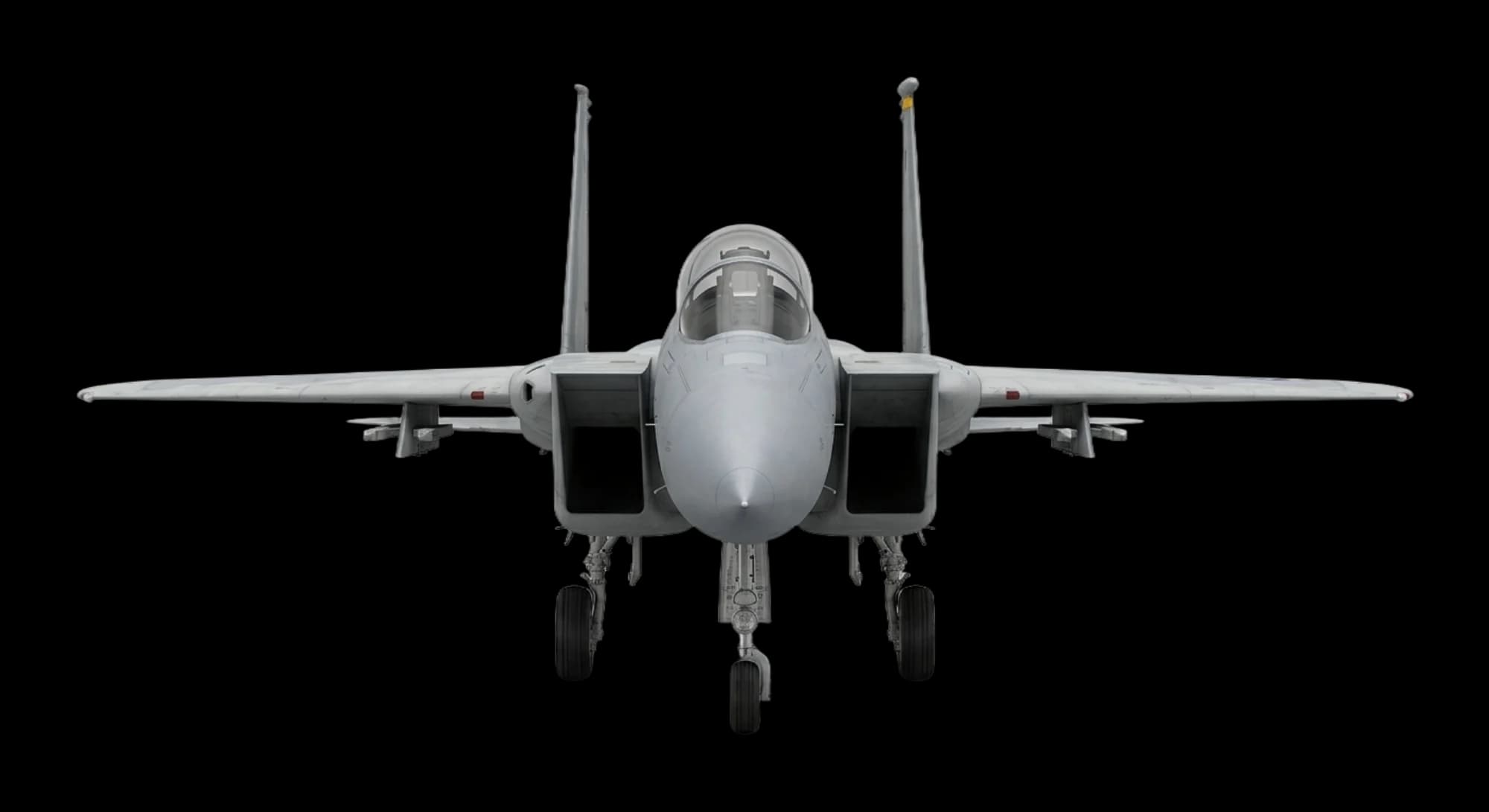

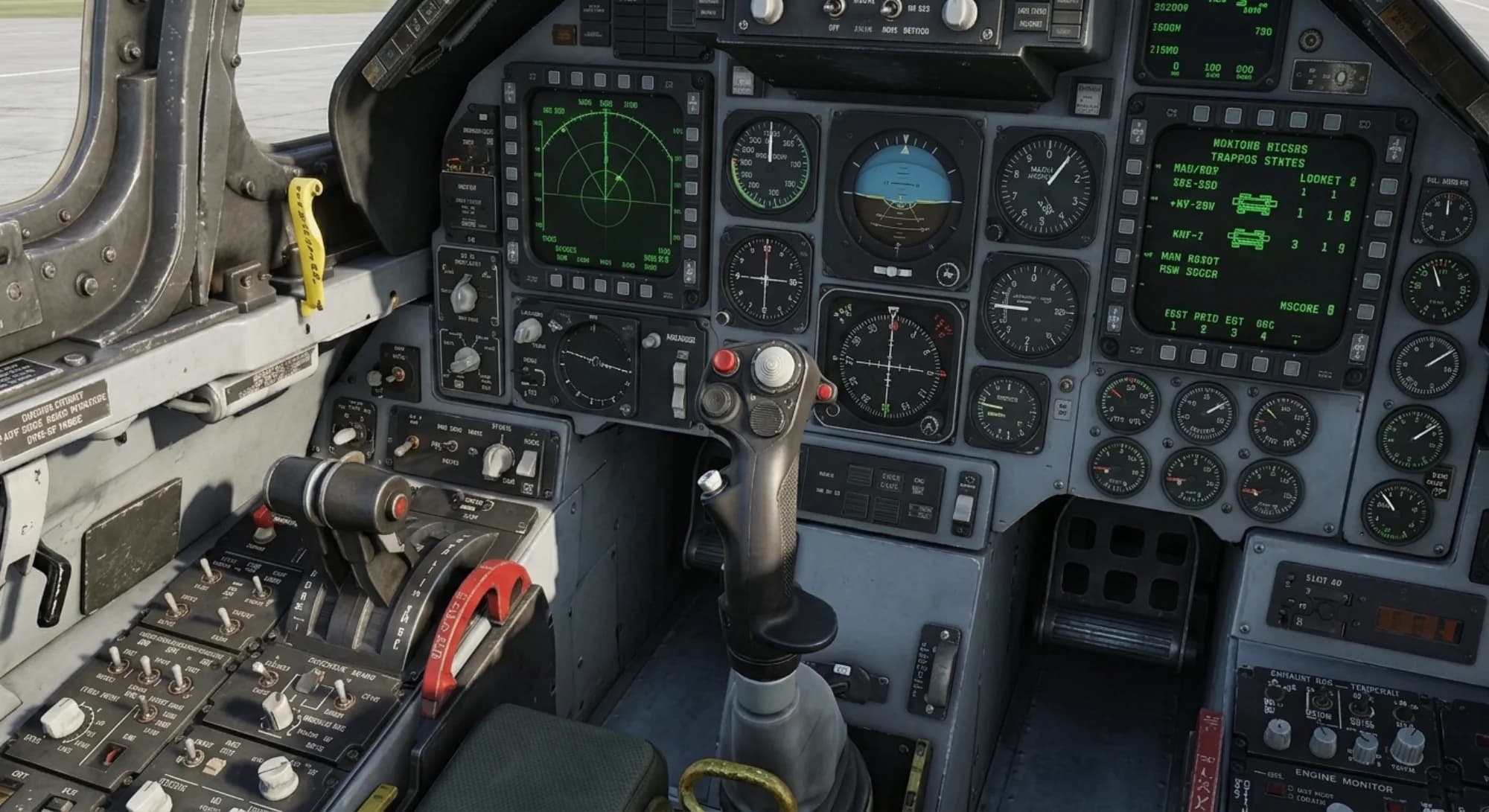

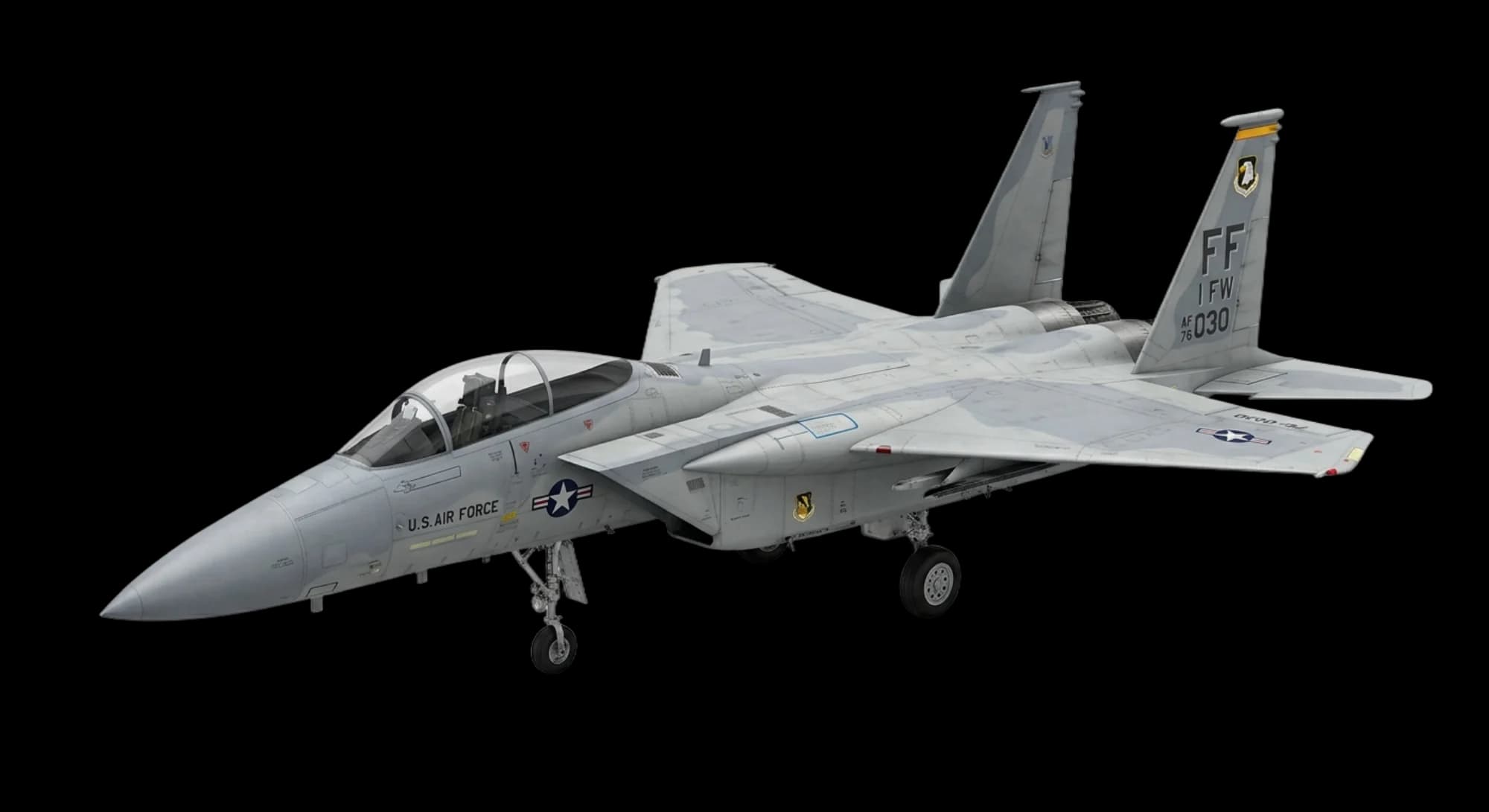

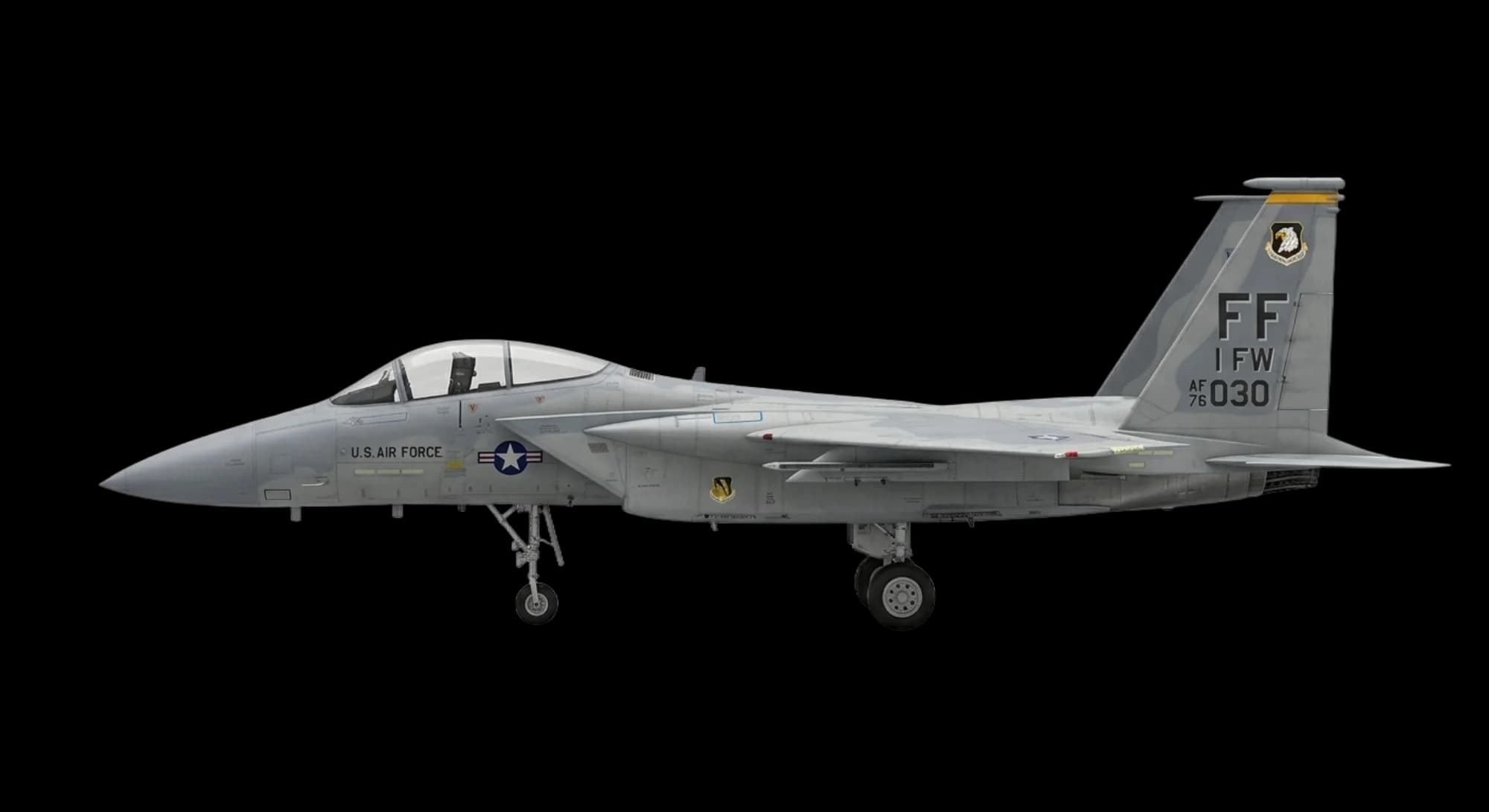

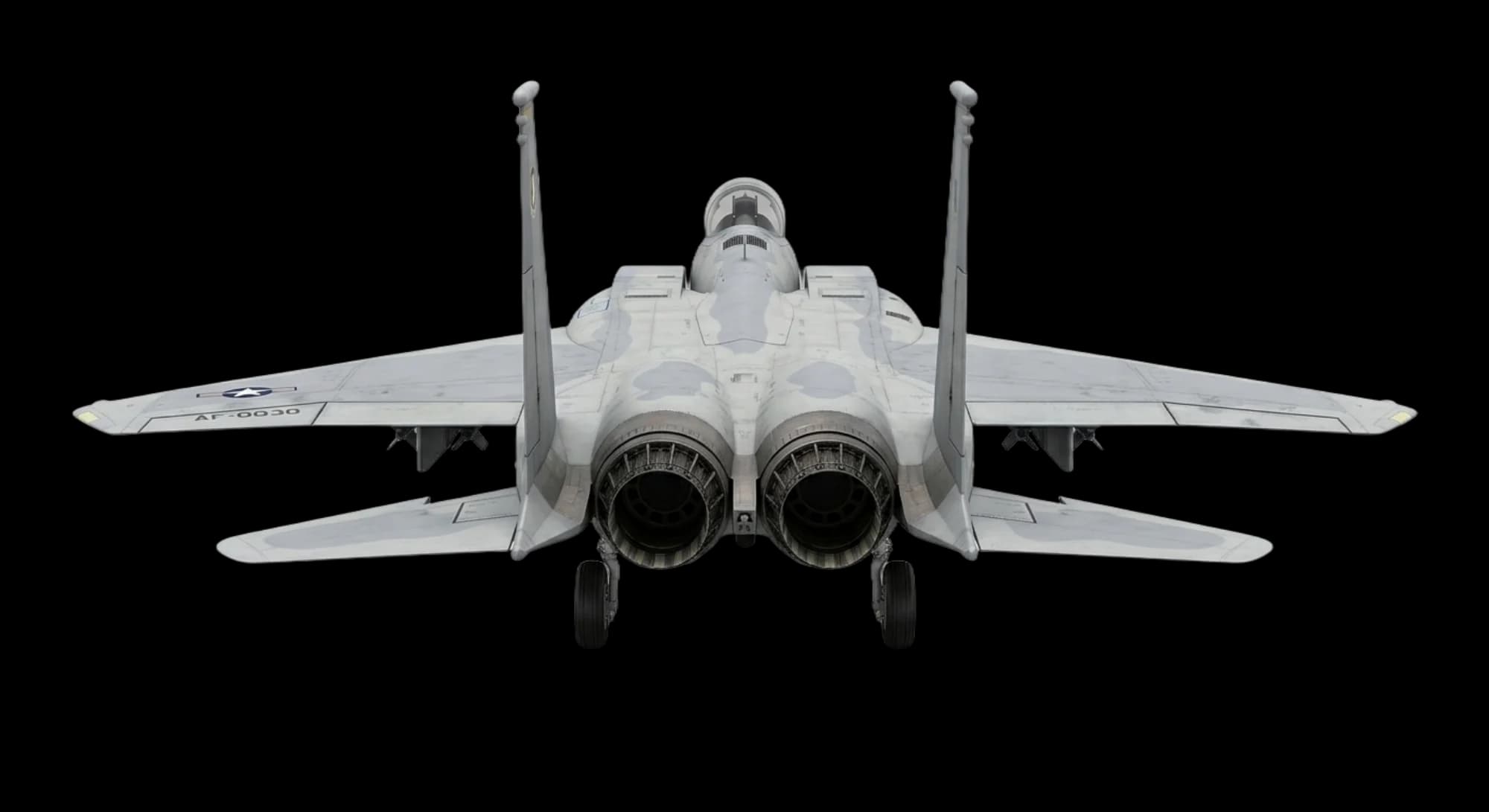

McDonnell Douglas F-15 Eagle 1972 - Front 3/4 viewMcDonnell Douglas F-15 Eagle 1972 - Front viewMcDonnell Douglas F-15 Eagle 1972 - Profile viewMcDonnell Douglas F-15 Eagle 1972 - Rear 3/4 viewMcDonnell Douglas F-15 Eagle 1972 - Rear viewMcDonnell Douglas F-15 Eagle 1972 - Cockpit viewMcDonnell Douglas F-15 Eagle 1972 - Cabin viewMcDonnell Douglas F-15 Eagle 1972 - Instrument Detail view
Front 3/4

The most successful air superiority fighter in history with a combat record of 104 kills and zero losses. The defining dogfighter of the late Cold War era.

History

The McDonnell Douglas F-15 Eagle was designed in direct response to the Soviet MiG-25 Foxbat threat, with the mantra Not a pound for air-to-ground reflecting its pure air superiority mission. The F-15 has achieved an unprecedented 104-0 kill-to-loss ratio in aerial combat across multiple conflicts. Israeli F-15s dominated Syrian fighters over the Bekaa Valley in 1982, and USAF F-15Cs achieved the majority of aerial kills in the 1991 Gulf War. The F-15E Strike Eagle variant later proved equally capable in the ground attack role. The aircraft remains in production as the F-15EX for the USAF.

Production & Heritage

Production Total1,198
DesignerGeorge Graff
Service Period1972

Technical Specifications

Engine2x Pratt & Whitney F100-PW-220 afterburning turbofan
Max Speed1650 mph
Range2765 nm
Ceiling65,000 ft
Crew1
Wingspan42.8 ft
Length63.8 ft
Empty Weight28,600 lbs
Max Weight68,000 lbs

Engine Details

Engine ModelPratt & Whitney F100-PW-220
Engine Count2
Engine ManufacturerPratt & Whitney
Thrust23770 lbs

Performance

Max Speed (Mach)Mach 2.5
Cruise Speed570 mph
Rate of Climb50000 ft/min

Dimensions

Wing Area608 sq ft

Weights

Max Takeoff Weight68,000 lbs

Armament

Guns1x 20mm M61A1 Vulcan rotary cannon
Missiles4x AIM-7 Sparrow and 4x AIM-9 Sidewinder or 8x AIM-120 AMRAAM

Capacity

Crew1

Tags

Designed by George Graff
