Vought F4U Corsair

1940-1969

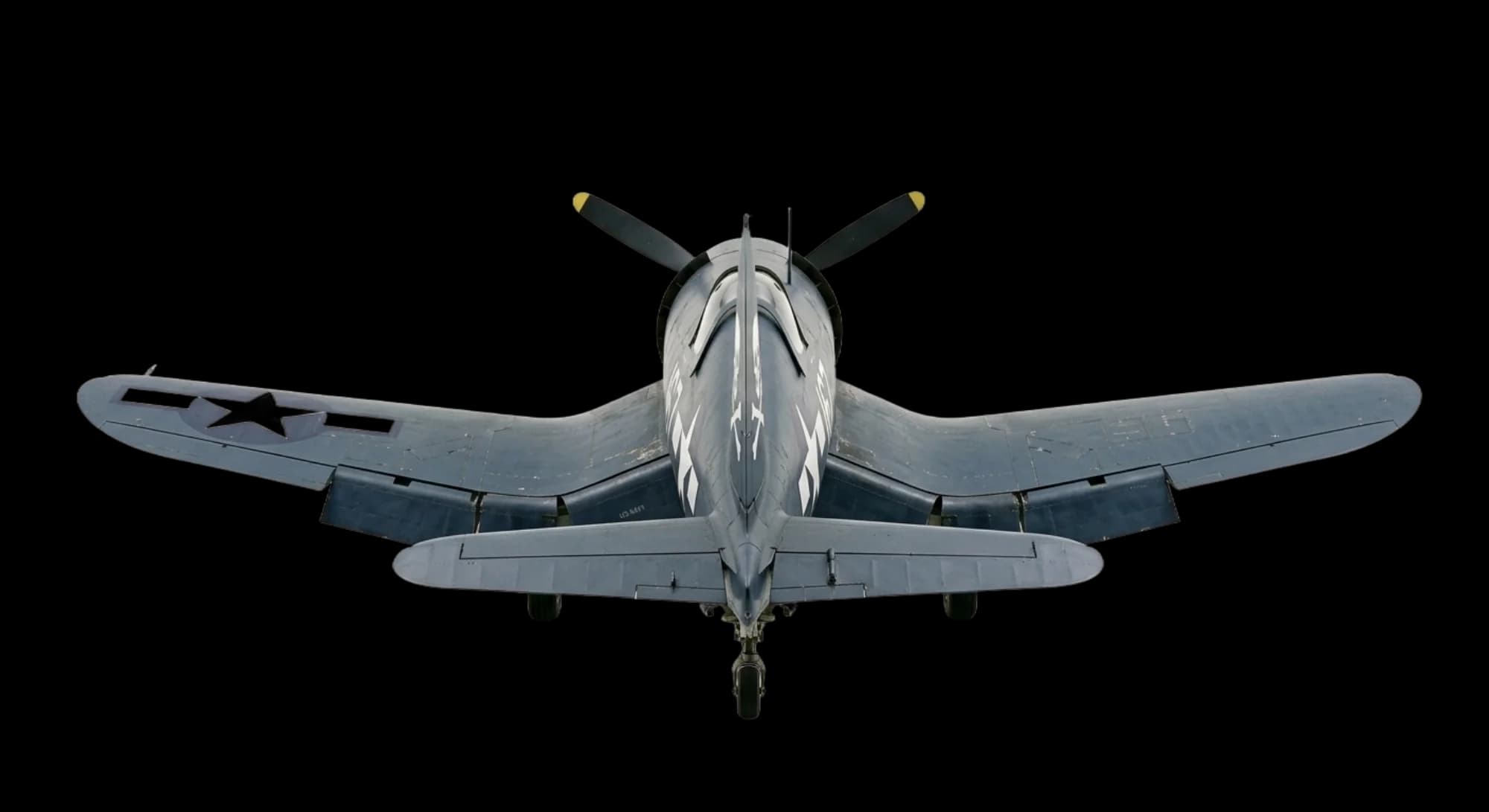

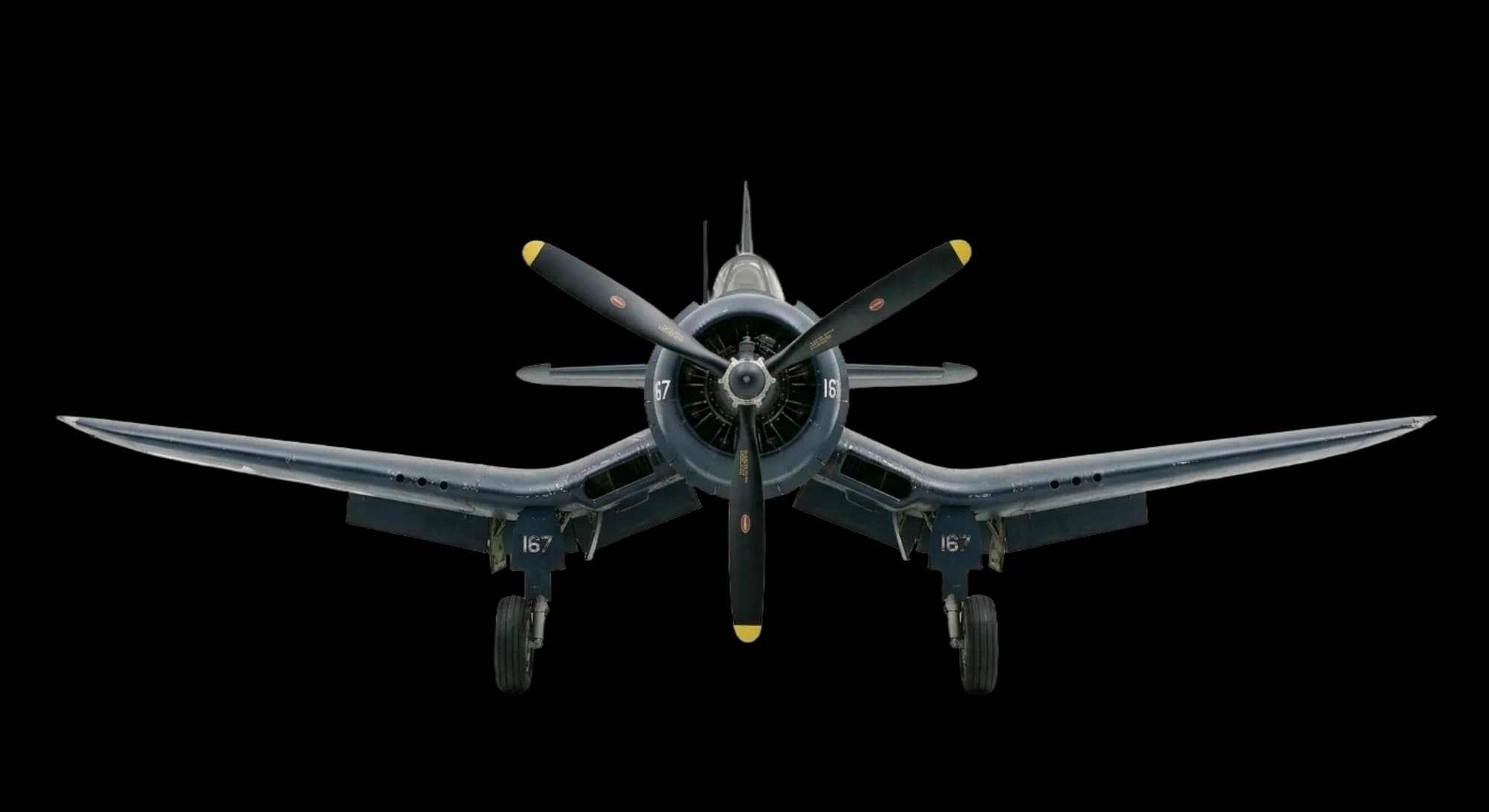

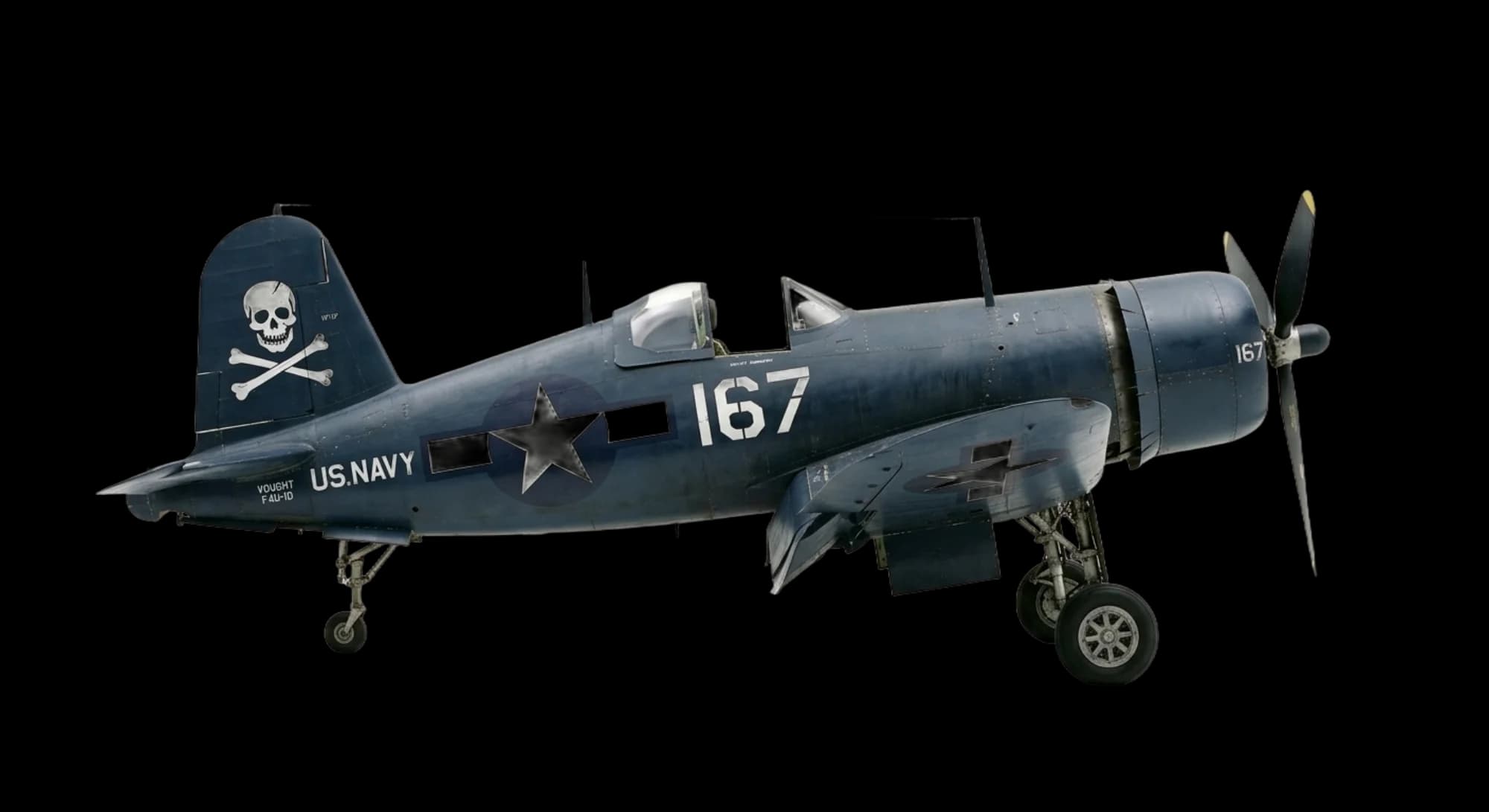

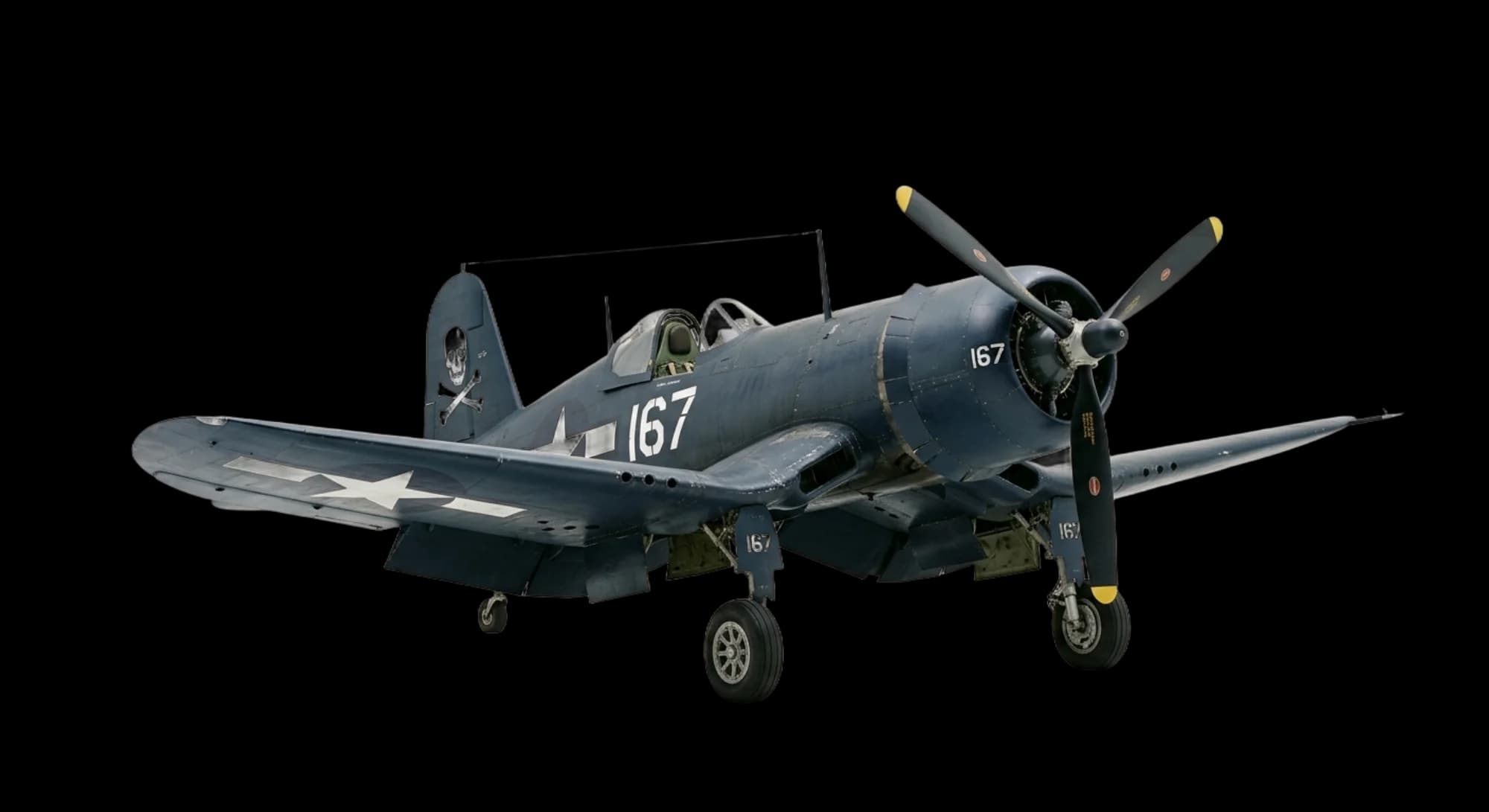

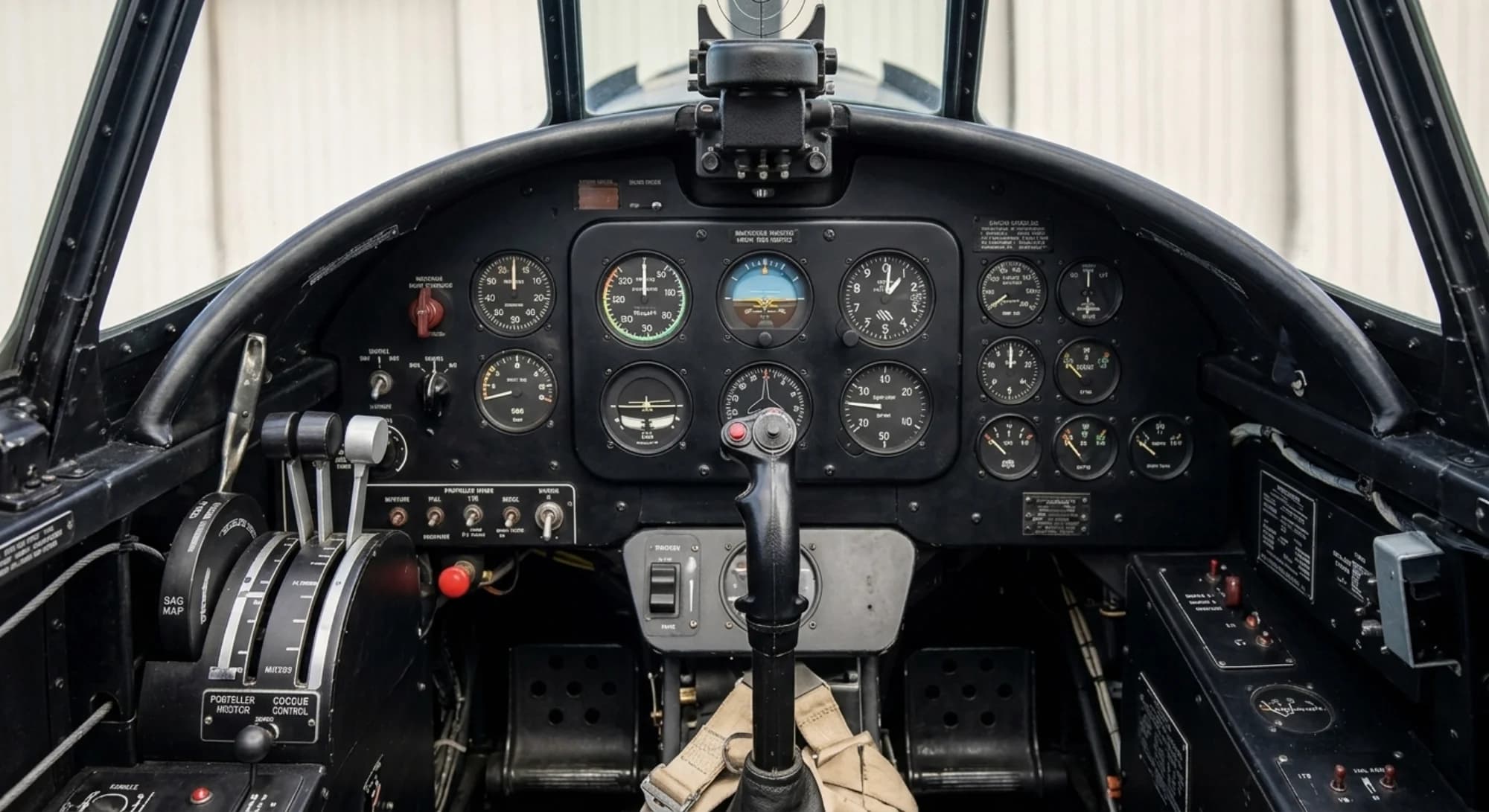

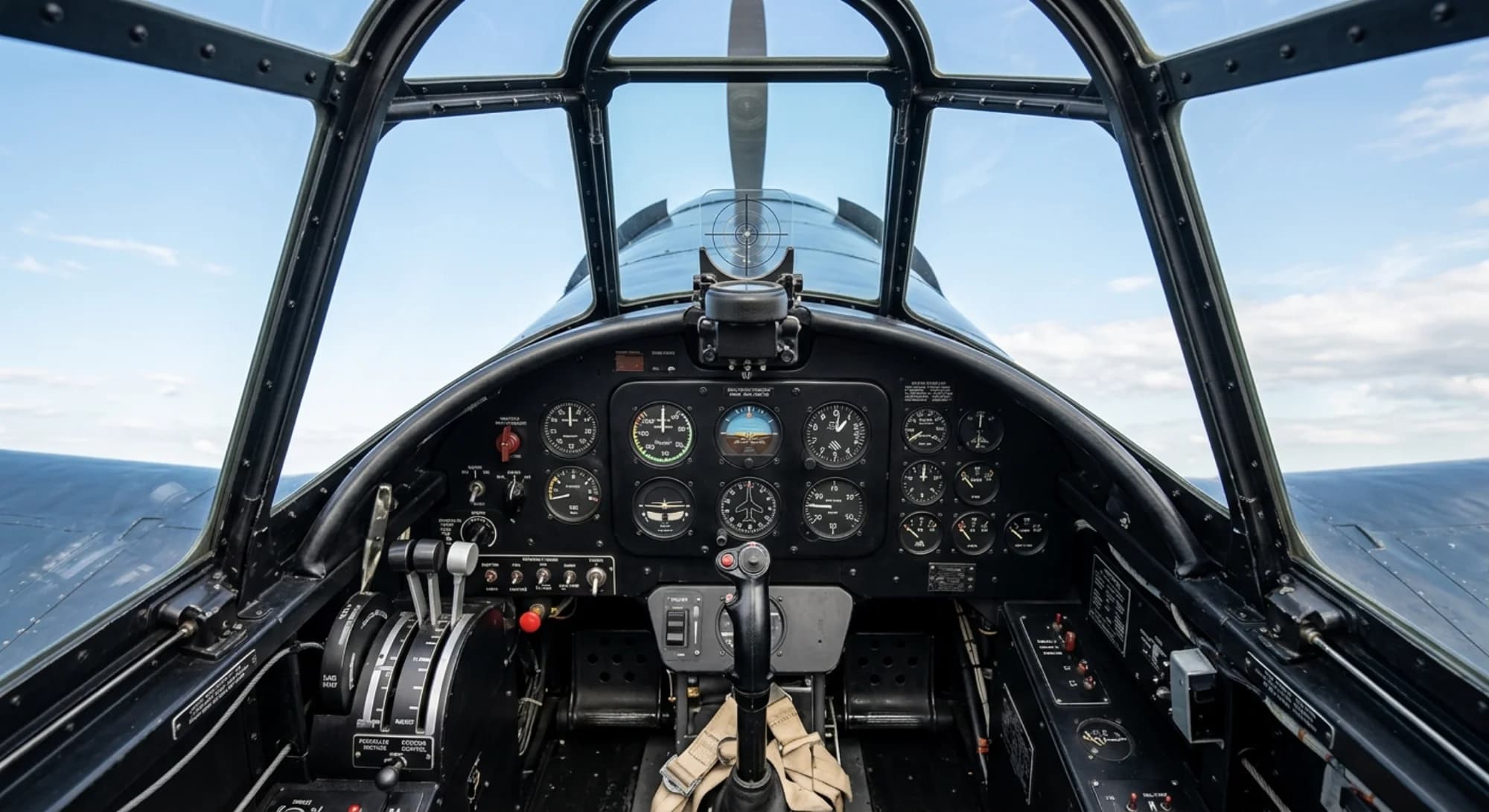

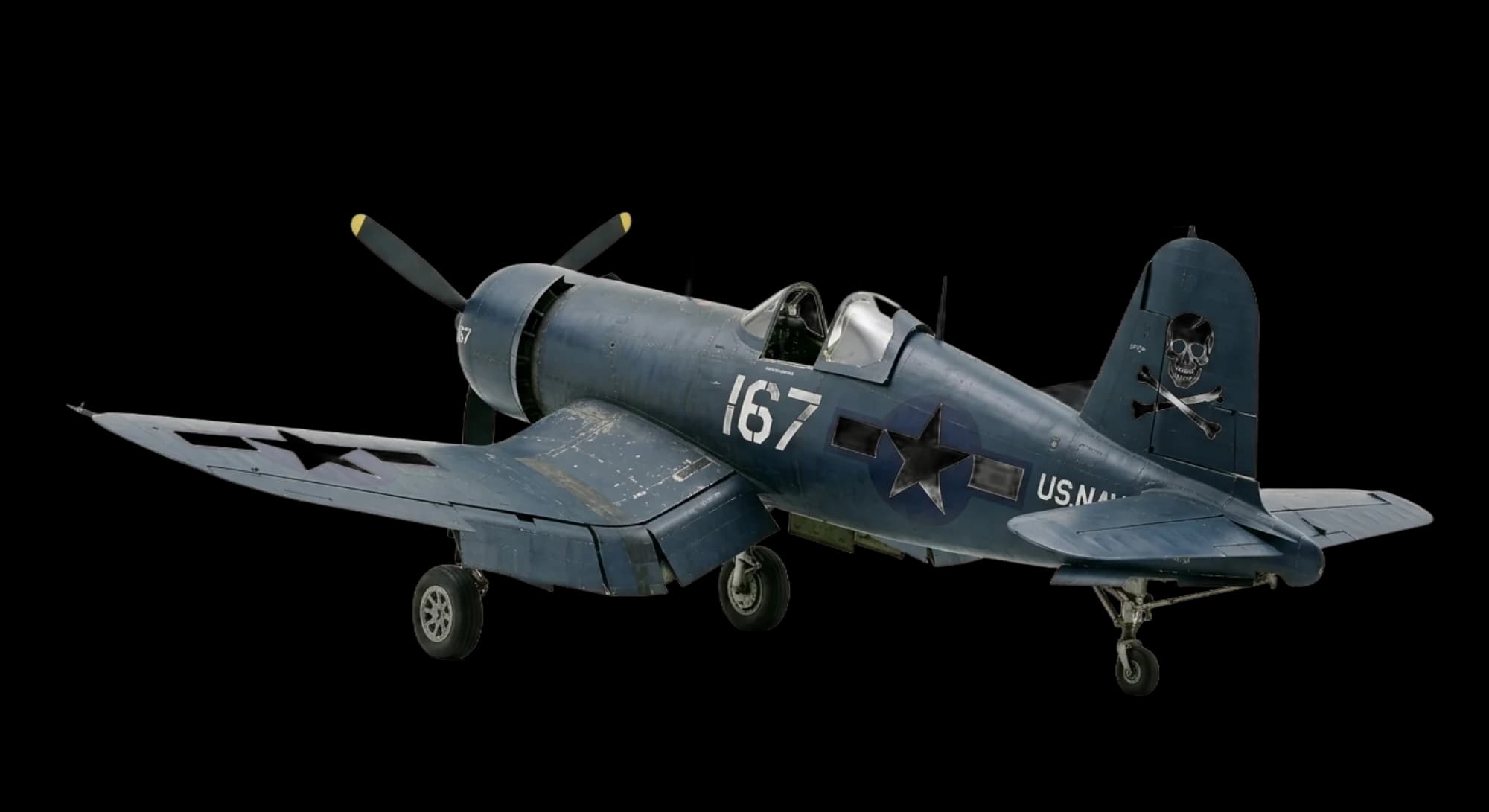

Vought Vought F4U Corsair 1940 - Front 3/4 viewVought Vought F4U Corsair 1940 - Front viewVought Vought F4U Corsair 1940 - Profile viewVought Vought F4U Corsair 1940 - Rear 3/4 viewVought Vought F4U Corsair 1940 - Rear viewVought Vought F4U Corsair 1940 - Cockpit viewVought Vought F4U Corsair 1940 - Cabin viewVought Vought F4U Corsair 1940 - Instrument Detail view
Front 3/4
Combat proven

The bent-wing bird of WWII, with an 11:1 kill ratio in the Pacific. One of the longest-serving piston fighters in history.

History

The Vought F4U Corsair was one of the finest carrier-based fighters of WWII, recognizable by its distinctive inverted gull wing designed to accommodate the massive propeller while keeping the landing gear short for carrier operations. Initially rejected by the Navy for carrier use due to poor visibility on approach, it first saw action with the Marines from island bases. The Corsair eventually proved itself aboard carriers and achieved an 11:1 kill ratio against Japanese aircraft. It served in Korea as a ground-attack aircraft and remained in production until 1953. Some air forces flew Corsairs into the late 1960s, making it one of the longest-serving piston-engine fighters in history.

Timeline

1940First flight
1943First combat over Guadalcanal with VMF-124, quickly earning an 11:1 kill ratio against Japanese aircraft
1950Corsairs fly close air support in the Korean War, the last piston-engine fighters in US combat
1953It served in Korea as a ground-attack aircraft and remained in production until 1953
1969Retired from service

Production & Heritage

Production Total12,571
DesignerRex Beisel
Service Period1940-1969

Technical Specifications

Engine1x Pratt & Whitney R-2800 Double Wasp radial
Max Speed417 mph
Range830 nm
Ceiling36,900 ft
Crew1
Wingspan41 ft
Length33.3 ft
Empty Weight8,982 lbs
Max Weight14,670 lbs

Engine Details

Engine ModelPratt & Whitney R-2800 Double Wasp radial
Engine Count1
Engine ManufacturerPratt & Whitney
Horsepower2000 hp

Performance

Rate of Climb3870 ft/min

Dimensions

Wing Area314 sq ft

Weights

Max Takeoff Weight14,670 lbs

Armament

Guns6x .50 cal M2 Browning machine guns
Bombs4,000 lbs of bombs or 8x 5-inch rockets

Capacity

Crew1

Tags

Designed by Rex Beisel
