F-4 Phantom II

1958-2021

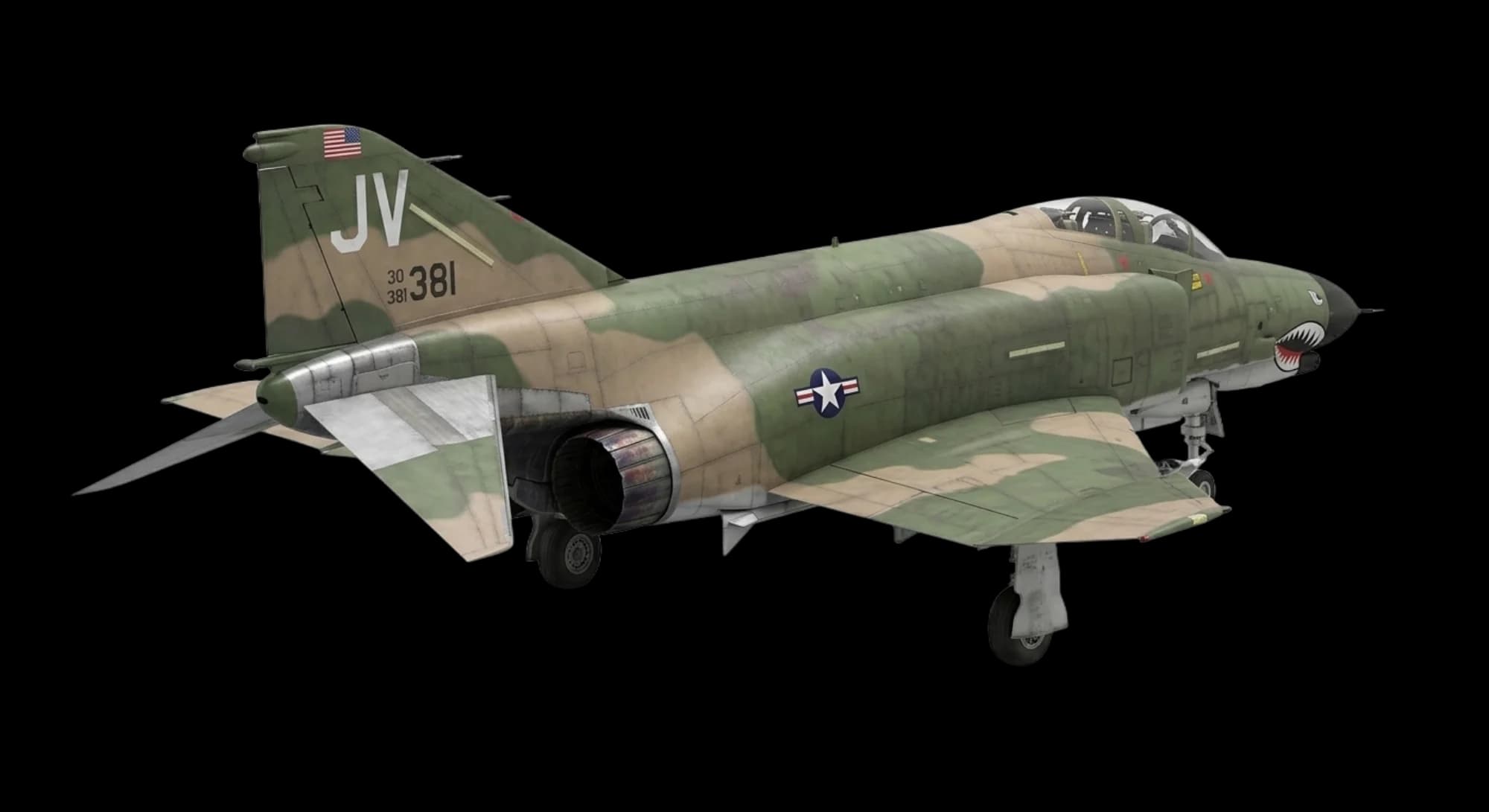

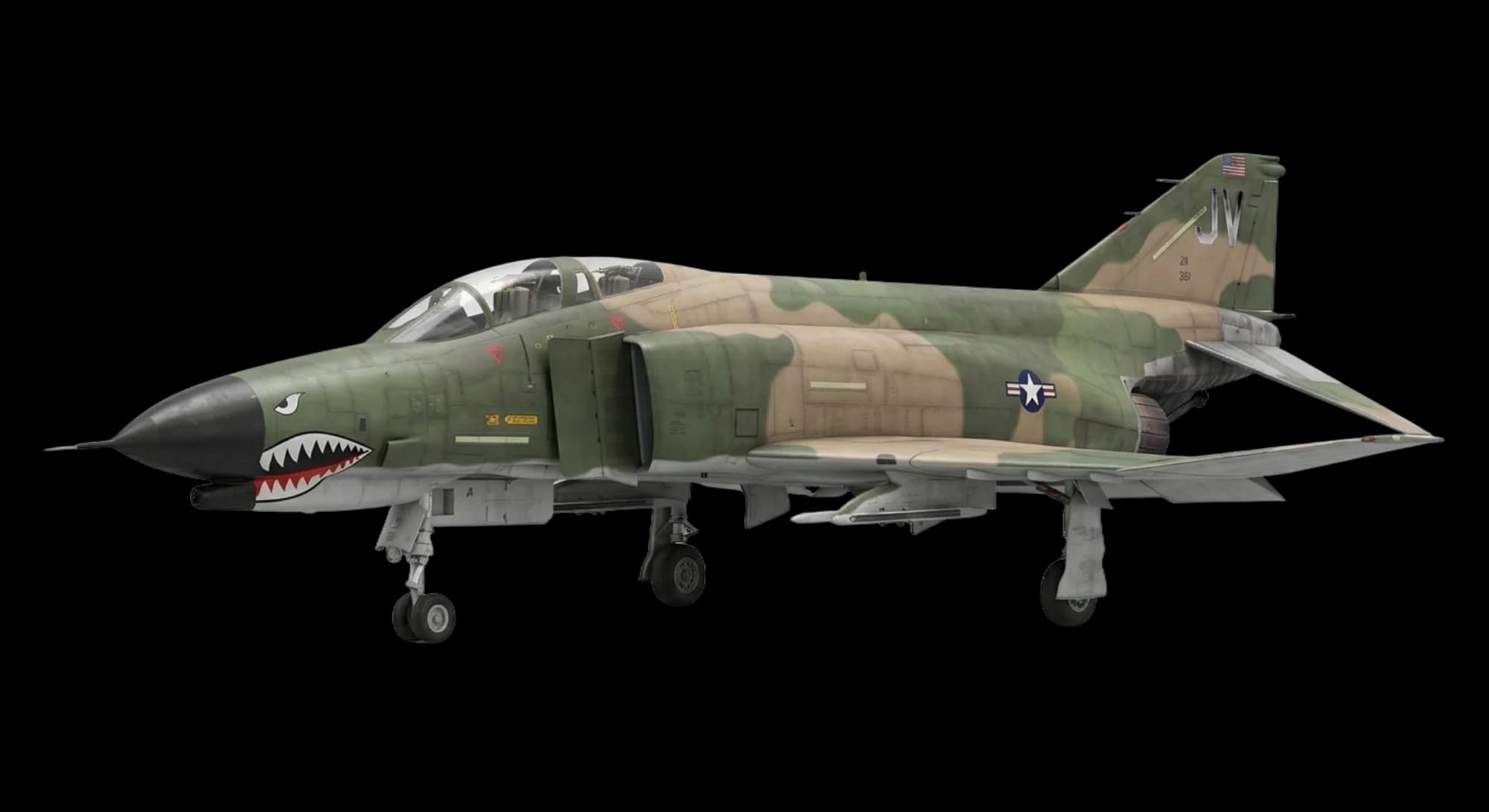

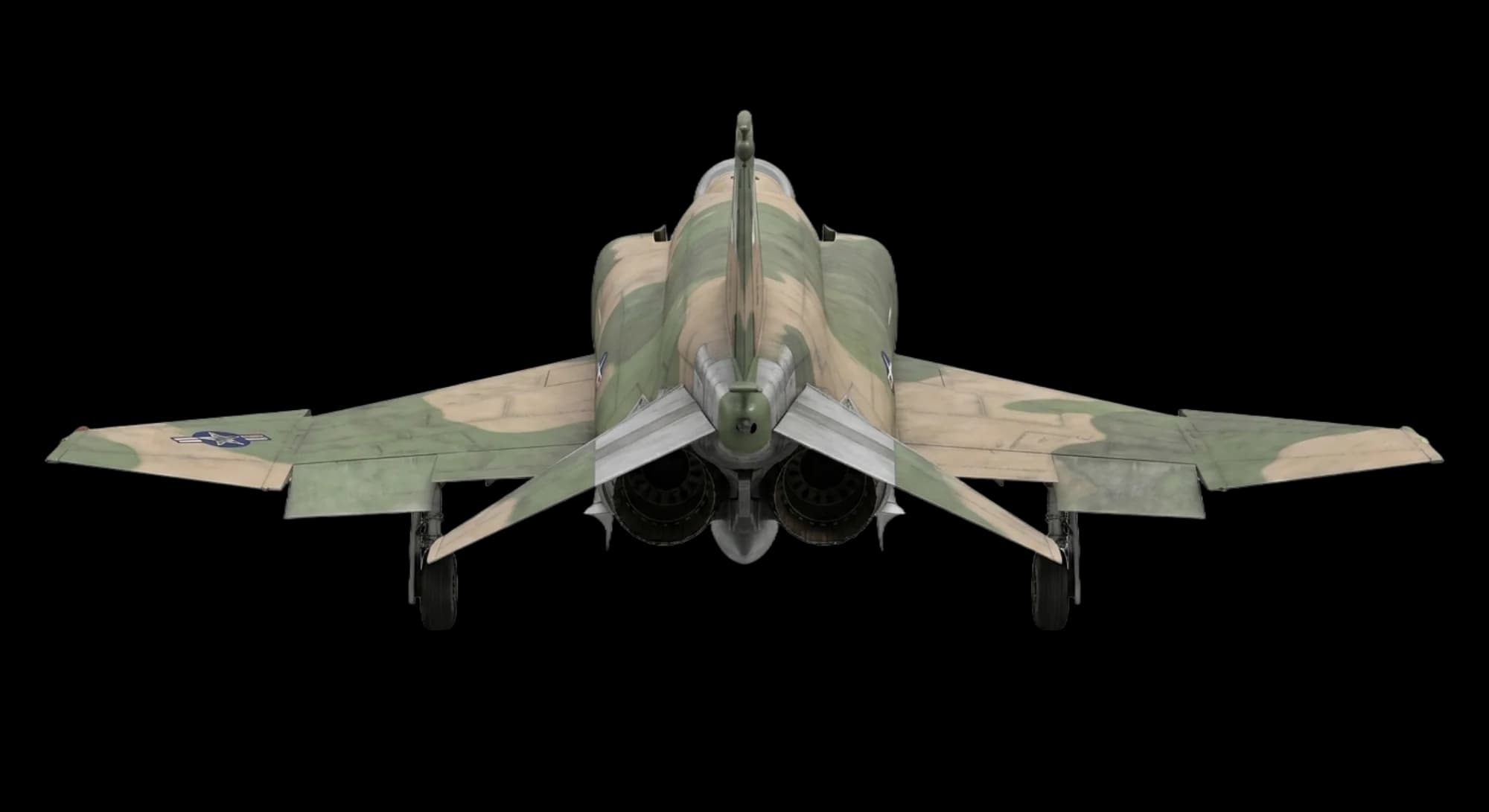

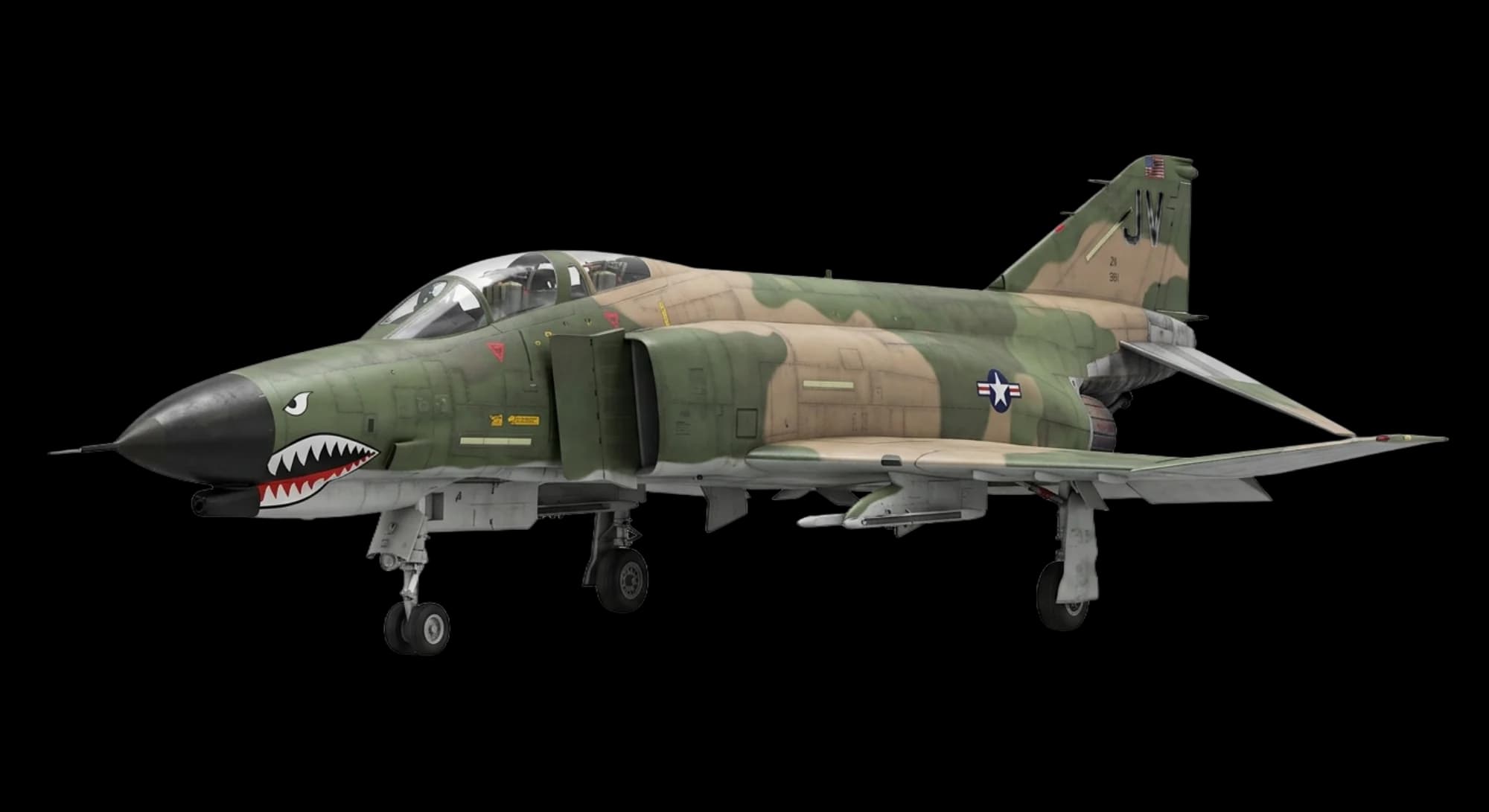

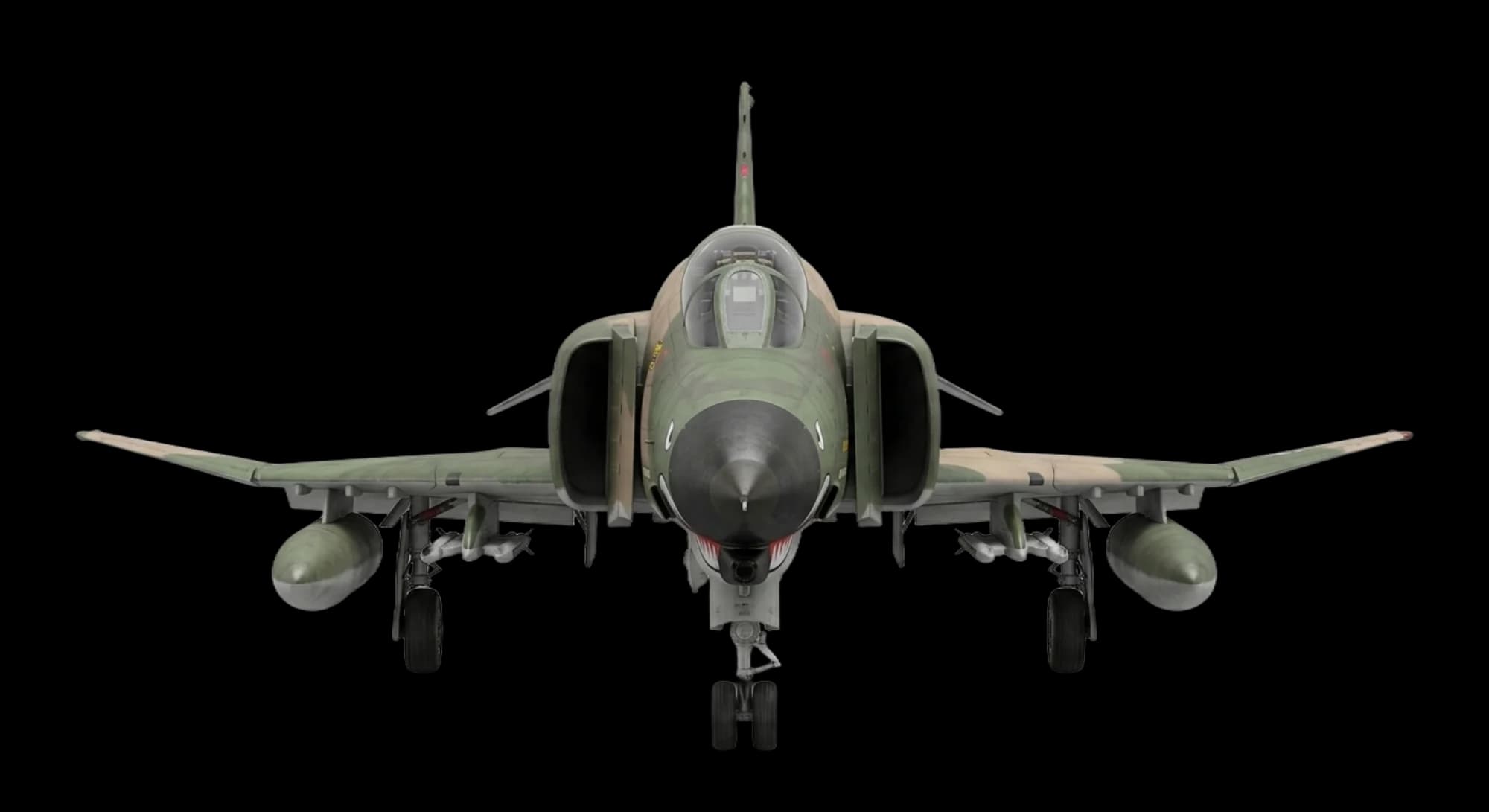

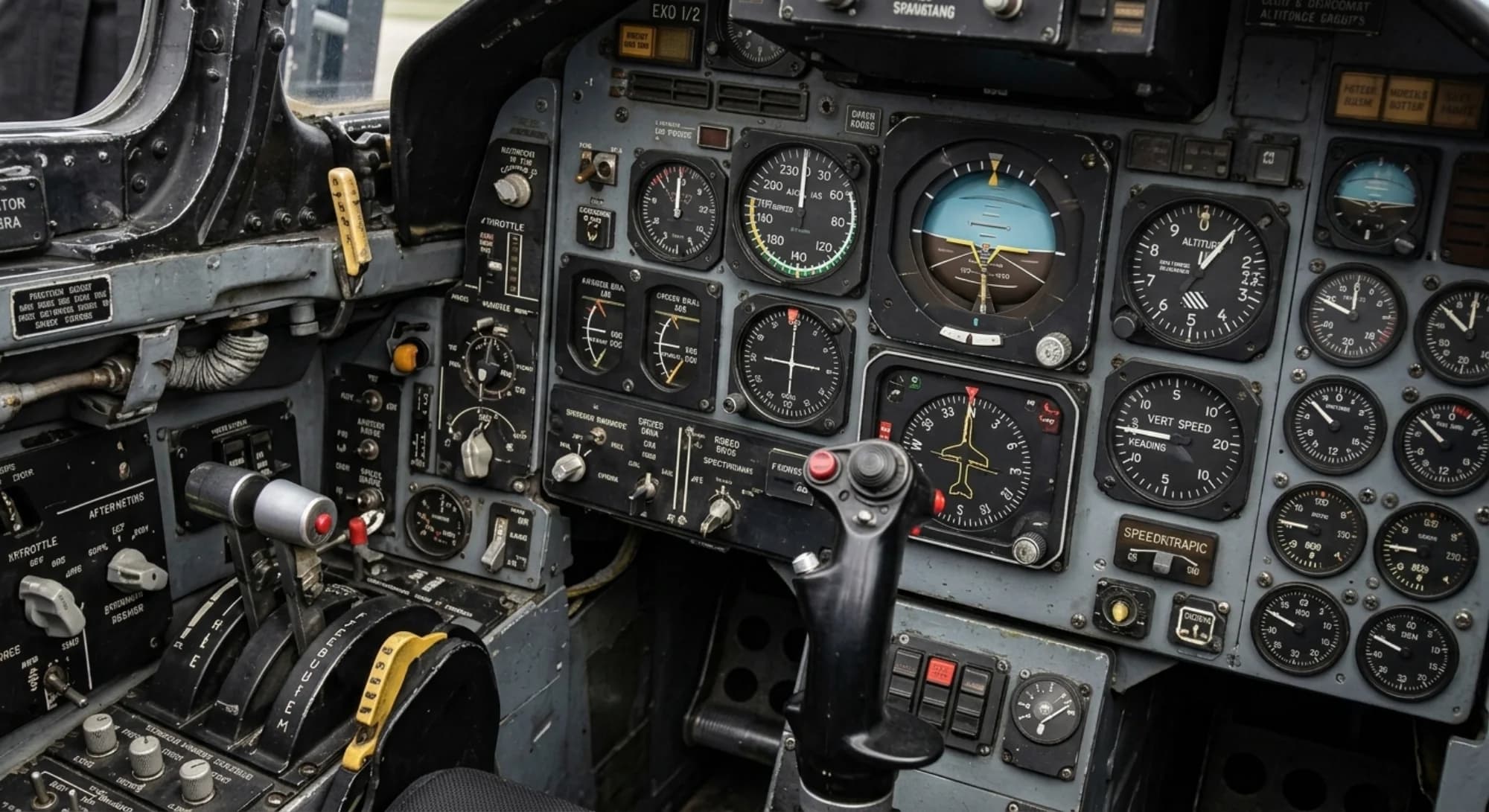

McDonnell Douglas F-4 Phantom II 1958 - Front 3/4 viewMcDonnell Douglas F-4 Phantom II 1958 - Front viewMcDonnell Douglas F-4 Phantom II 1958 - Profile viewMcDonnell Douglas F-4 Phantom II 1958 - Rear 3/4 viewMcDonnell Douglas F-4 Phantom II 1958 - Rear viewMcDonnell Douglas F-4 Phantom II 1958 - Cockpit viewMcDonnell Douglas F-4 Phantom II 1958 - Cabin viewMcDonnell Douglas F-4 Phantom II 1958 - Instrument Detail view
Front 3/4

The defining Western fighter of the Cold War, serving with 11 nations. The only aircraft to simultaneously hold absolute speed and altitude records.

History

The McDonnell Douglas F-4 Phantom II was originally designed as a carrier-based interceptor for the US Navy but proved so capable that the USAF adopted it as well, an unprecedented move. It became the primary fighter for both services during the Vietnam War, where it initially struggled in dogfights due to its lack of an internal gun. This experience led to the creation of the TOPGUN school and the USAFs Fighter Weapons School. The Phantom served with 11 nations including Israel, where it dominated Middle Eastern skies. Over 5,000 were built, making it the most-produced American supersonic military aircraft.

Production & Heritage

Production Total5,195
DesignerHerman Barkey
Service Period1958-2021

Technical Specifications

Engine2x General Electric J79-GE-17A afterburning turbojet
Max Speed1472 mph
Range1403 nm
Ceiling60,000 ft
Crew2
Wingspan38.4 ft
Length63 ft
Empty Weight30,328 lbs
Max Weight61,795 lbs

Engine Details

Engine ModelGeneral Electric J79-GE-17A
Engine Count2
Engine ManufacturerGeneral Electric
Thrust17845 lbs

Performance

Max Speed (Mach)Mach 2.23
Cruise Speed585 mph
Rate of Climb41300 ft/min

Dimensions

Wing Area530 sq ft

Weights

Max Takeoff Weight61,795 lbs

Armament

Guns1x 20mm M61A1 Vulcan rotary cannon
Missiles4x AIM-7 Sparrow and 4x AIM-9 Sidewinder
Bombs16,000 lbs on 9 hardpoints

Capacity

Crew2

Tags

Designed by Herman Barkey

Featured in Collections
